Electrical：

Voltage: 50Volts AC(per pin)

Current: 0.5A (per pin)

Contact Resistance: 30mΩ Max.

Dielectric Withstanding Voltage: 500V AC Min.

Insulation Resistance: 500 MΩ Min.

Operating Temp. : -25℃ ~ +85℃

Specification(Abbreviation)：

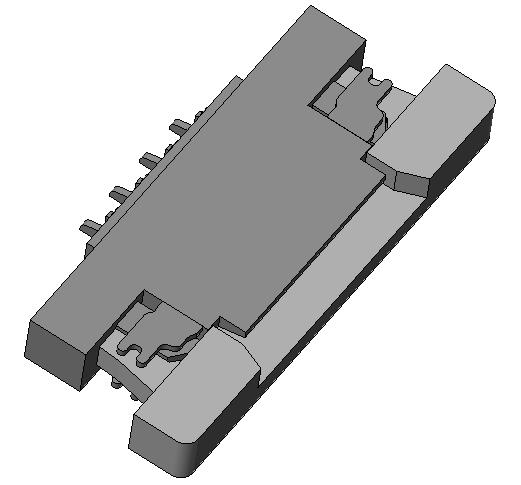

Family: ZIF

Pitch (mm): 1.0mm

PCB Mounting: SMT

Operation Direction: R/A

Product Height (mm):1.2mm

CableType: normal

Contact Position: T/C

Cable Thickness(mm): 0.3±0.03

Circuits: 4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30
