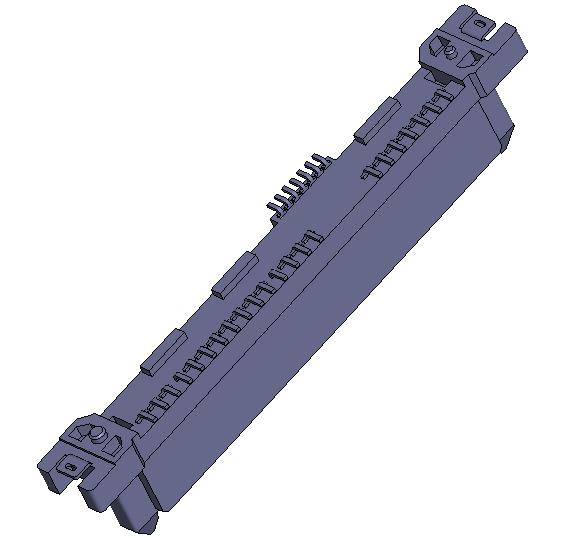

1.27/0.8 mm PITCH SAS CONN.RECEPTACLE VERTICAL SMT TYPE ASSY
Electrical：
Voltage: 30 Volts AC
Current: 1.5 Amperes
Contact Resistance: 30 m Ω Max.
Dielectric Withstanding Voltage: 500 VAC Min.
Insulation Resistance: 1000 MΩ Min.
Operating Temperature: 0℃ to +55℃
Non-Operating Temperature: -40℃ to +85℃
Specification(Abbreviation)：
Pitch(mm): 1.27/0.80
PCB Mounting: Press Fit
Operation Direction: S/T
Product Height (mm) : 8.15mm
Circuits: 29
High Speed Support: SAS 3(12Gbps)
