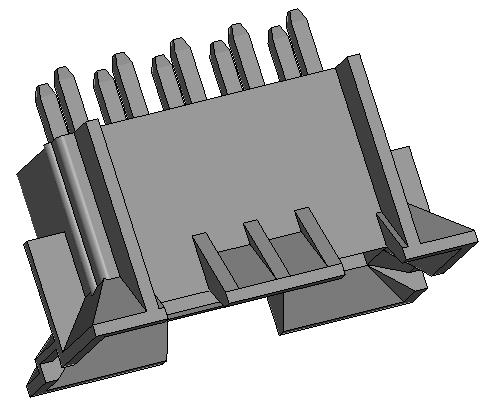

Molex 4.20mm 180° Bell-connector Series Wafer double row
Electrical
Voltage: 600 Volts AC,DC (per pin)
Current: 7A AC DC
Contact Resistance: 20 mΩ max.
Dielectric Withstanding Voltage: 1500V AC Min.
Insulation Resistance: 1000MΩ min.
Operating Temp. : -25℃ ~ +85℃
Specification(Abbreviation)
Family: Wafer
Pitch (mm):4.2mm
PCB Mounting:DIP
Operation Direction: D/R S/T
Above PCB Height (mm): 14.1mm
Current (A): 7A AC DC
Insulation O.D.: ∮3.1mm MAX;(AWG#16~#24)
Mates With: NO
Circuits: 2,4,6,8,10,12,14,16,18,20,22,24
